6 Power BI Construction Dashboard Pages for BIM Reviews

I’ve been using our Frame demo reports to name the pages a BIM team actually needs.

One team means executive status. Another team means project controls. A BIM coordinator means model issues, quantities, clash status, and the ability to click into the objects behind the number.

This is a page gallery: what each Power BI construction dashboard page should prove, what model data it needs, and how it should connect back to the 3D model. A project team opens the report, asks a question, and can move from the metric to the model without rebuilding the context by hand.

This post is a practical walkthrough of the pages I would include in a Power BI construction dashboard for BIM teams.

Example 1: Executive Overview

The overview page should answer the first scan.

For a construction project dashboard, that usually means:

• project status by area, level, or phase
• total modeled assets or quantities
• progress by work package
• open issues or coordination blockers
• recent model update date
• links into the detailed review pages

The overview should not try to be every dashboard at once. Its job is to decide where the reviewer should go next.

This is the page that maps closest to broad searches like “construction dashboard” and “construction project dashboard.” It gives leadership a readable summary, then lets BIM and project controls teams drill into the evidence.

For a broader setup guide, see Construction Dashboard in Power BI: Project Controls with BIM Data.

Example 2: Model Viewer Page

The viewer page is where the dashboard stops being an abstract report.

This page should let the team:

• select objects from the model
• isolate a filtered set from a chart
• apply colors by category, package, level, or status
• open saved views from a previous meeting
• keep the model and the Power BI visuals in sync

That last point matters. A construction dashboard should not make the reviewer copy an object ID into another tool just to see what the number means.

This is why we wrote separately about Autodesk Viewer in Power BI. The viewer is often the page that makes the report trustworthy.

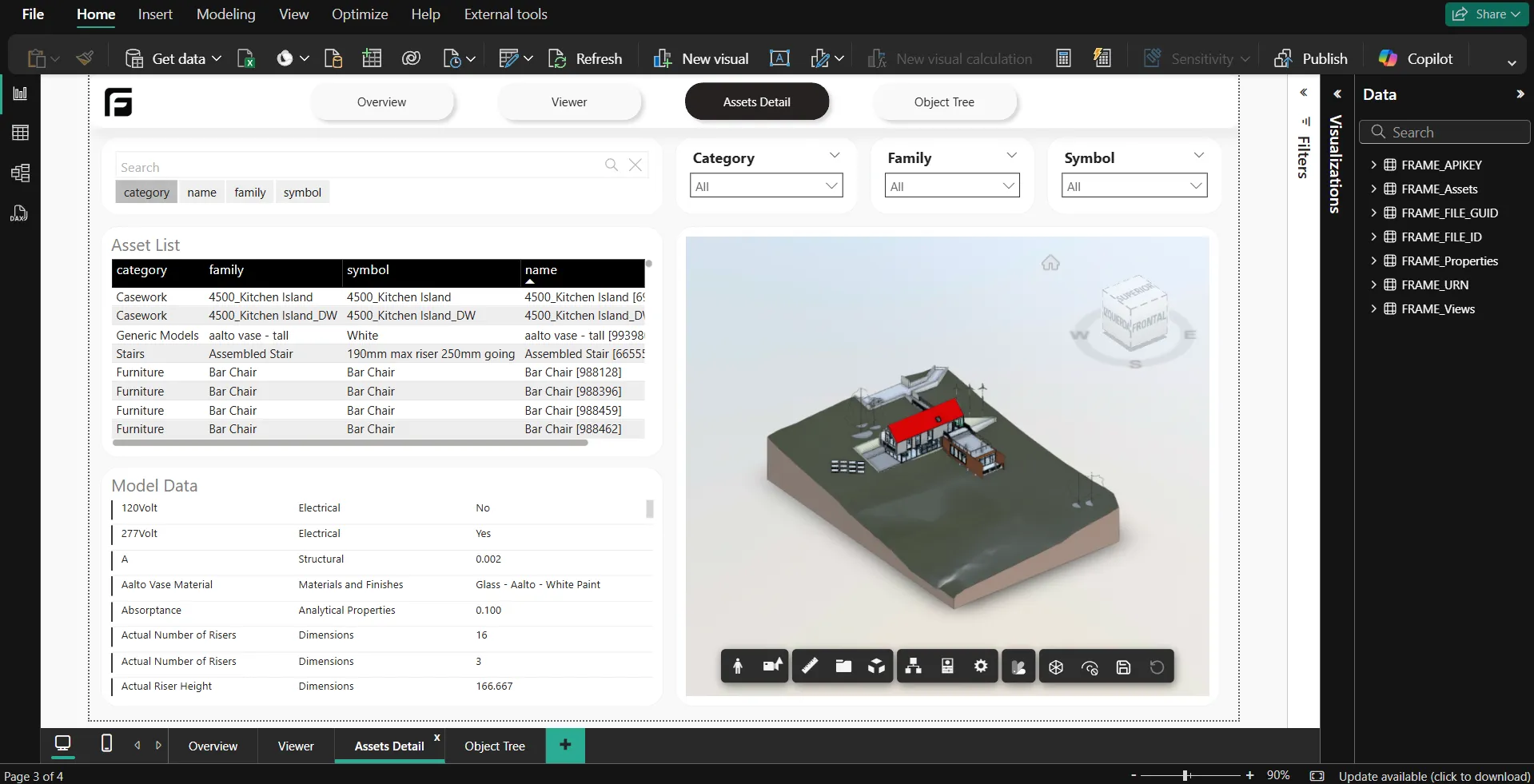

Example 3: Assets Detail Page

The assets page is the page I expect BIM teams to use most.

The useful fields are usually plain:

• category
• family
• type or symbol
• level
• source model
• object ID
• object name
• selected property values

This page is where the dataset shape starts to matter. Frame gives reports a clear asset table and a clear property table so teams can duplicate queries and make their own review tables without starting from raw model exports.

For example, a report author can start from assets and create:

• doors missing fire ratings
• equipment by system
• rooms by department
• walls by phase
• assets by contractor package

That is a better starting habit than asking every report author to understand a full model export before they can build a useful page.

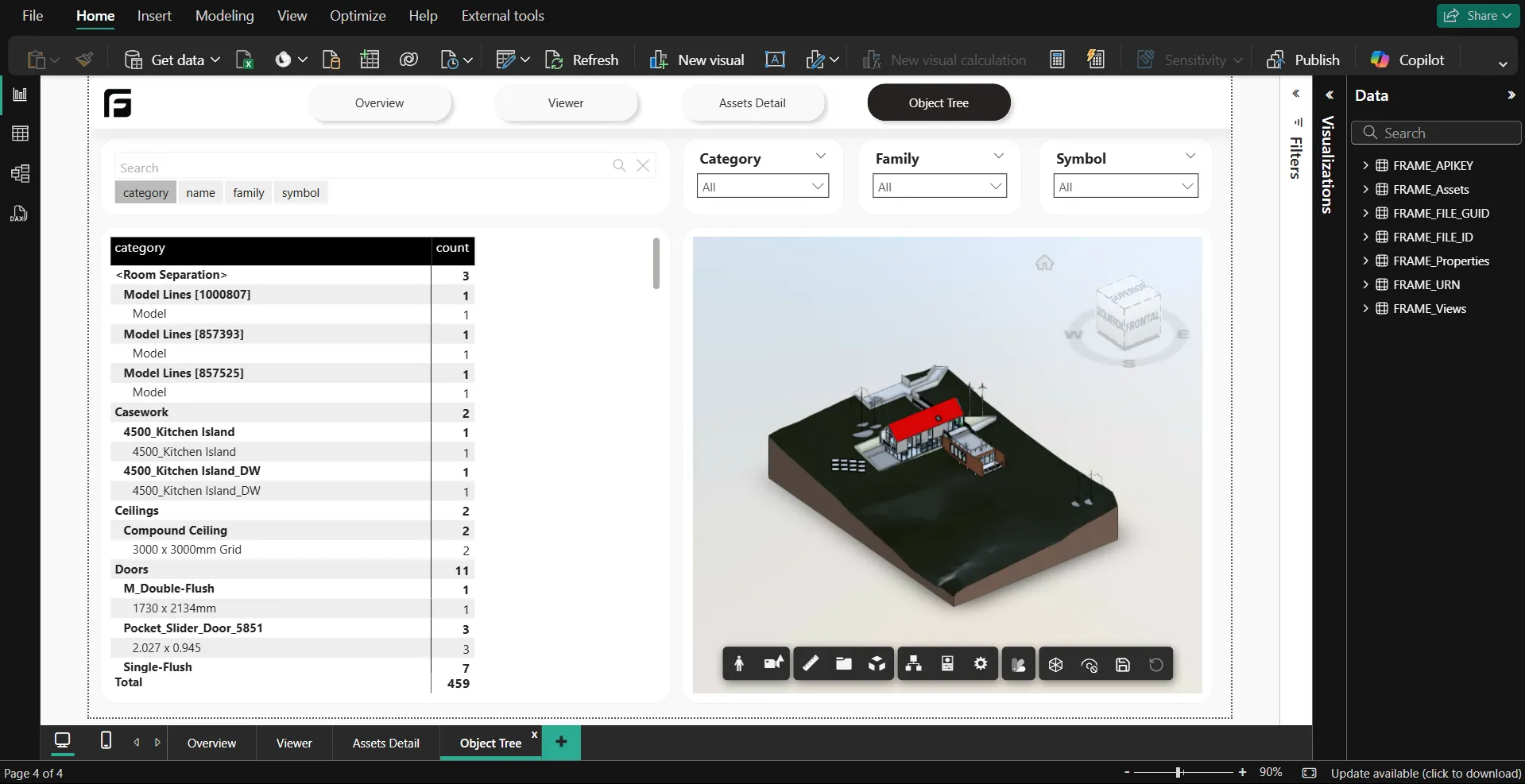

Example 4: Object Tree Page

The object tree page helps when someone needs to understand where the data came from.

For Revit, the hierarchy often follows category, family, and type. For IFC, the shape may depend on storeys and IFC classes. For Navisworks, the source file and coordination structure matter more.

This page does not need to be the first page in the report. It is the page that helps when the dashboard result looks strange and someone needs to inspect the model structure behind it.

Example 5: Quantity Takeoff Page

Quantity pages are useful when the project question is payment, procurement, or scope validation.

The page should answer:

• What quantity changed?
• Which level or work package did it affect?
• Which model objects support the total?
• Can the reviewer isolate those objects?
• Does the quantity line up with the latest model version?

This is where BIM data can make a normal construction dashboard more useful. The chart is not only a summary. It is a path back to the model.

See the dedicated construction quantity takeoff dashboard guide for the deeper workflow.

Example 6: Clash Or Issue Dashboard

Coordination teams need a different kind of dashboard.

The page should make coordination status obvious:

• open vs closed issues
• issue owner or responsible company
• issue type
• level, zone, or location
• source model or linked model context
• recent status changes

If the source is Navisworks Clash Detective, keep the source export as XML. That preserves the clash structure and avoids pretending the coordination workflow is just another spreadsheet cleanup.

For the deeper clash workflow, read the Power BI clash dashboard guide.

A Good Construction Dashboard Is A Review Habit

The examples above are useful because each page maps to a real review habit.

The executive page is for the first scan. The viewer is for verification. The assets page is for filtering model objects. The object tree is for tracing the source. The quantity page is for scope and payment. The issue page is for the coordination meeting.

That is the structure I would use before adding more visuals.

The best construction dashboard examples are usually simple at the page level. They become powerful because the pages connect: chart to table, table to model, model to saved view, saved view to the next meeting.

Where Frame Fits

Frame is built for this kind of dashboard because the model is part of the report, not an attachment beside it.

The workflow can start from local Revit, IFC, and Navisworks files or from Autodesk Forma / former ACC project models. Frame prepares model data, exposes clear report queries, and keeps the viewer connected to the Power BI visuals.

For most teams, a good first stack is:

1. Power BI starter template
2. Autodesk Forma to Power BI workflow
3. Autodesk Viewer in Power BI
4. BIM Power BI dashboard templates

Still early, but I think the dashboard pattern gets clearer when we stop starting from “what charts should we add?” and start from “what review habit does this page support?”
