BIM for Dispute Resolution: A Practical Way to Build the Project Story

BIM beyond design: when the model becomes evidence

Most BIM conversations stay focused on design, coordination, and quantity takeoff. Those are important uses, but they are not the full story. When a project starts slipping, the same model can become something else: a structured record of what happened, where it happened, and how the issue affected the job.

That is where BIM for dispute resolution becomes valuable.

In many projects in Colombia, one recurring source of delay is familiar: design gaps and low-detail drawings. They are not always the only problem, but they show up often enough to create redesigns, extra field work, and budget growth. Once that starts, technical discussions quickly move into claims, responsibility, and proof.

At that point, the real challenge is no longer just identifying the issue. The challenge is building a version of events that everyone can understand.

Why claims become hard to explain

Claims and disputes usually fail in one of three places:

• The evidence is scattered across photos, notes, emails, and meeting minutes.
• The timeline is hard to reconstruct with confidence.
• The technical story is difficult to explain to non-technical stakeholders.

Even when the engineering team understands the problem, that does not mean the owner, legal team, or commercial team will see it the same way. A claim becomes much stronger when the explanation is visual, traceable, and tied to the actual project context.

That is why we needed a single source of truth on one road infrastructure project.

The turning point: one report that connected place, proof, and impact

On that project, we ran into a pattern we had seen before: design errors and missing detail forced redesigns, created extra work in the field, and pushed the schedule out. The engineering side was clear enough. The problem was showing the full chain of events in a way that removed ambiguity.

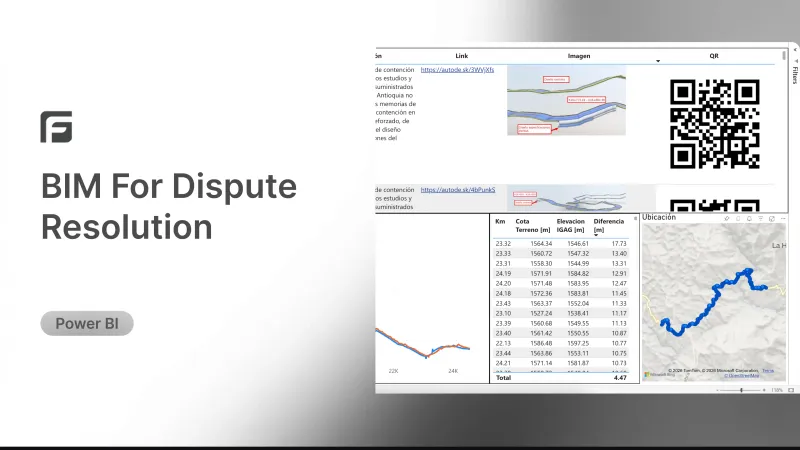

We used Frame inside a Power BI report, together with the Frame Excel Add-in, to assemble the supporting data and connect it back to the model.

The dashboard tied together three things:

• Exact location in the project with a live 3D view.
• Evidence including photos, notes, references, and site records.
• A short event summary describing what happened and what impact it had.

That structure changed the conversation. Instead of debating disconnected documents, everyone could review the same event in the same place with the same supporting material.

What BIM forensic analysis looks like in practice

When people hear “forensic analysis,” they often imagine a specialist exercise done at the very end of a failed project. In practice, the workflow can be much simpler and much more useful than that.

The idea is to use the BIM model as the spatial anchor for events that matter. Each issue can be linked to:

• A location or affected scope in the model.
• A date or sequence in the project timeline.
• Supporting records that explain the cause.
• A short description of the consequence on cost, time, or execution.

This does not replace contracts, notices, or legal documentation. It makes them easier to understand.

For technical teams, it reduces the effort needed to reassemble project history. For commercial and legal teams, it turns a complex coordination problem into a readable project narrative.

Why the 3D view matters in dispute resolution

A claims discussion often breaks down because two people are talking about the same issue from different mental pictures. One is thinking about a drawing set, another about a field condition, and another about a schedule impact.

The 3D view helps align those perspectives fast.

With a model-linked report, you can show:

• The exact area where the issue appeared.
• The systems or elements affected.
• The surrounding context that made the problem significant.
• The related records that document the event.

That matters when the discussion moves beyond engineering and into formal claims. It is much easier to defend a position when the project story is both technical and visual.

Why Excel still matters in a forensic BIM workflow

The model and the dashboard are only part of the process. Most teams still need to organize evidence, event logs, and references in a spreadsheet-friendly format.

That is where the Frame Excel Add-in fits well:

• It helps assemble structured supporting data around each event.
• It keeps the relationship between records and model context readable.
• It creates a practical bridge between project documentation and Power BI.

That combination is useful because disputes are rarely solved by one screenshot or one drawing. They are solved by consistency across many small pieces of evidence.

A better use of BIM across the project lifecycle

One of the biggest missed opportunities in BIM is treating it as a design-only tool. If the model already exists, and if the project data already exists, then there is no reason to stop using them once construction problems begin.

The same BIM environment that supports coordination can also support:

• Delay analysis.
• Evidence organization.
• Claims preparation.
• Internal dispute avoidance.
• Executive communication with non-technical stakeholders.

That is the real shift. BIM is not just a way to produce geometry. It is a way to make the project story legible when clarity matters most.

Video walkthrough

We will attach a short video here showing how this workflow looked in practice, including the 3D view, the linked evidence, and the event summary inside the report.

Final thought

We ended up winning that case, but the bigger takeaway was not the result itself. It was the realization that BIM becomes even more valuable when the project stops being straightforward.

If you already have the model and the project data, you already have the raw material needed to build a much clearer case.

If your team is dealing with claims, disputes, or recurring redesign issues, Frame can help turn that information into a report people can actually read and act on.

If you want to explore related workflows, see our guide to sharing Power BI dashboards with 3D models and our practical overview of Power BI templates for BIM teams.
